Eaton Accessory In-Wall Dimmer

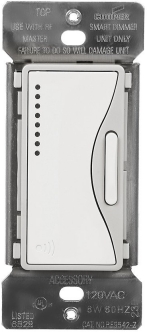

Eaton RF9542-ZWS Aspire Z-Wave Smart Accessory Dimmer, White Satin

../../../_images/eaton_accesory_inwall_dimmer.jpg

Brief information

  • Compatible with Aspire RF master dimmers (RF9534 and RF9536) for 3-way, multi-location control using traditional 3-way wiring or dedicated traveller wires
  • Cannot be associated, as this is a non-RF device - use traveller wires for 3-way application.
  • Neutral wire is not required for installation of device
  • Amber LED at bottom of LED display indicates ON/OFF load status
  • Decorator and designer series products offer the same functionality with two distinct styles
  • Electro-mechanical push pad for ON/OFF operation with separate DIM/BRIGHT bar
  • LED dims to lower level when in the OFF state
  • Seven step blue LED display alongside push pad indicates selected light level - even in full daylight (coordinates light level status with associated master dimmer)
  • Pressing and holding push pad for 2 seconds brings light to full brightness without affecting preset levels
  • Power failure memory

Specification

  • Power: 120 VAC, 60 Hz.
  • Signal (Frequency): 908.42 MHz.
  • Terminations: RF9542 has three 6” pre-stripped wire leads for line, traveller and ground
  • Testing & Code Compliance: cULus Listed 6B28. NOM Certified
  • Operating Temperature Range: 32-104° F (0-40° C)

Inclusion/Exclusion to/from a network

  1. Put controller to Inclusion/Exclusion mode
  2. Push bottom paddle once to reset device. Device will be included/excluded to/from zwave network.

Configuration description

There is no configuration in this device.
