Eaton in-wall dimmer

Cooper RF9536-NAW Dimmer Switch, Aspire RF 1000W Incandescent/Magnetic Low Voltage Smart System - Alpine White

../../../_images/eaton_inwall_dimmer_rf9536n.jpg

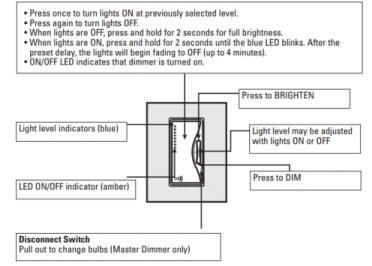

Operation

  • Press once to turn lights ON at previously selected level.
  • Press again to turn lights OFF.
  • When lights are OFF, press and hold for 2 seconds for full brightness.
  • When lights are ON, press and hold for 2 seconds until the blue LED blinks. After the preset delay, the lights will begin fading to OFF (up to 4 minutes).
  • ON/OFF LED indicates that dimmer is turned on.

Specification

  • Power 120 VAC, 60 Hz
  • Maximum Load 1000 Watts
  • Signal (Frequency) 908.42 MHz

Inclusion/Exclusion to/from a network

  1. Put controller to Inclusion/Exclusion mode
  2. Push top or bottom paddle once to reset device. Device will be included/excluded to/from zwave network.
../../../_images/eaton_inwall_dimmer_rf9536n_d.jpg

Configuration description

There is no configuration in this device.
