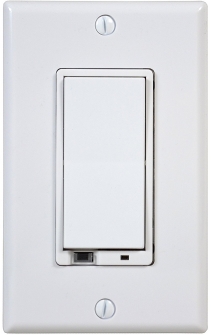

Leviton wall-mount dimmer

Leviton DZMX1-1LZ Decora Z-Wave Controls Scene Capable Universal Dimmer, White/Ivory/Light Almond

Operation

• Scene Capable Universal Dimmer

  • Z-Wave compatible
  • White, Light Almond and Ivory faces included
  • Supports Z-Wave Beaming and Network Wide Inclusion

• Scene capable
• User pre-set minimum brightness before turning off
• 49 different fade rates
• Transient surge suppression built-in
• User pre-set ‘on level’
• Not for use with vizia rf+ systems

Specification

• 450W Dimmable LED/CFL
• 1000W Incandescent, Halogen, MLV and Mark X
• 120V 60HZ, neutral required

Include/Exclude to/from a network

1. Put controller to Inclusion/Exclusion mode
2. Push the paddle once to reset device. Device will be included/excluded to/from zwave network.

Link in Amazon

https://www.amazon.com/Leviton-DZMX1-1BZ-Controls-Capable-Universal/dp/B01GONGX3O/ref=sr_1_1?s=hi&ie=UTF8&qid=1502426812&sr=1-1&keywords=Leviton+DZMX1

Configuration description

There is no configuration in this device.
