GoControl dimmable flood light

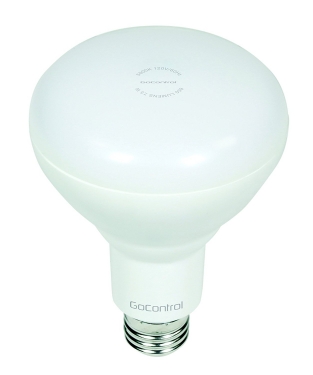

GoControl Bulbz Z-Wave Dimmable BR30 LED Indoor Flood Light - LBR30Z-1

../../../_images/gocontrol_flood_light_lbr30z.jpg

Features & benefits

  • Uses only 7.5 watts of energy and provides as much light as a traditional 65-watt incandescent flood light bulb (650 lumens)
  • Medium-cool 5,000K light appearance (pleasant and cool, providing near-daylight illumination)
  • Perfect for recessed ‘can’ (4” or larger) and track light fixtures that use flood lights; for kitchens, bathrooms, family & living rooms, foyers, offices - you name it
  • Annual energy consumption (@ 3 hrs./day, 11¢/kWh) is only $0.90!
  • Includes wall light switch ‘clip’ that will keep the light switch in the ‘on’ position to ensure that the Z-Wave circuitry inside the flood light bulb is always active
  • Dimensions: 3.75” diameter by 5.375” high

Specification

  • Power Supply: 120 VAC, 60 Hz
  • Brightness: 650 lumens (Equivalent to 65 Watt incandescent light bulb)
  • Power Consumption: 7.5 Watts
  • Color Temperature: 5000K
  • Bulb Lifetime: 25,000 hour (equivalent 22.8 years based on 3 hours/day)
  • Radio Frequency: 908.4 MHz / 916 MHz
  • Wireless Range: Up to 130 feet line of sight between the Z-Wave Controller and/or the closest Z-Wave Repeater
  • Normal Operating Temp 77°F (25°C)
  • Repeater Yes

Inclusion/Exclusion to/from a network

  1. Put controller to Inclusion/Exclusion mode
  2. Power OFF then power ON device
  3. Device flashes to indicate process completes

Configuration description

  1. Dim level memory
    • Parameter: 1 (0x01)
    • Size: 1 byte
    • Value:
      • 0x00: the bulb will be full brightness when turned on.
      • 0x01: the bulb will turn on to the last dim level setting.
    • Default: 0x00
  2. Dim/Bright step level
    • Parameter: 9 (0x09)
    • Size: 1 byte
    • Value: 0x01 ~ 0x63
    • Default: 0x01
  3. Dim/Bright speed
    • Parameter: 10 (0x0A)
    • Size: 1 byte
    • Value: 0x01 ~ 0x0A
    • Default: 0x03
