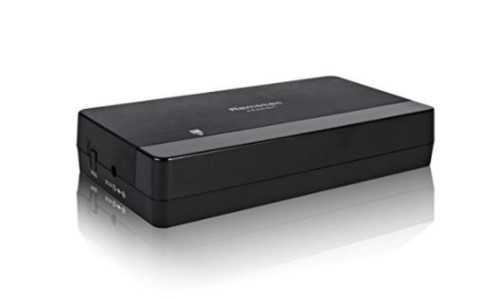

Remotec Z-Wave BW8371US IR Extender

../../../_images/remotec_tv_remote_zxt310.jpg

Product Description

  1. Manage your AV IR-controlled appliances through a single mobile device
  2. Supports 3 Z-Wave command classes: Configuration, Simple AV and Multi-Channel
  3. Built-in AV IR code library for easy configuration
  4. Best-in-class learning capability
  5. Compact, minimal design

Working with PhD

  1. Control Remotec Z-Wave IR Extender and other connected devices with the Zinno app available on iOS&Android
  2. Associate Remotec Z-Wave IR Extender with other smart devices in Zinno App
  3. Automate the Remotec Z-Wave IR Extender with PhD Scence routes, like Good Morning, Goodnight…

Add Remotec Z-Wave IR Extender to PhD’s network

  1. On Zinno App, go to Menu → Devices → Tap “+” button to put PhD to inclusion mode
  2. Make sure Remotec Z-Wave IR Extender switched to Channel 1 (EP1)

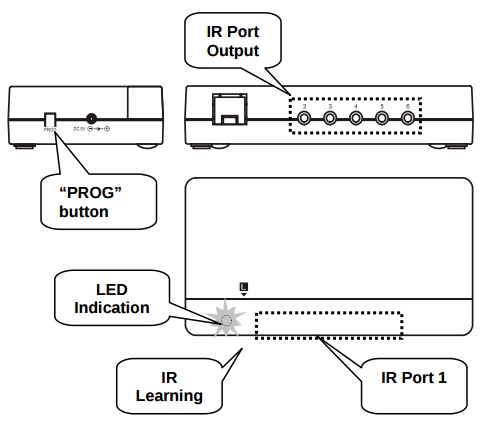

  3. Press “PROG” button once. Device will be included/excluded to/from zwave network.
../../../_images/remotec_tv_remote_zxt310_d.jpg

Specification

  • Model number: BW8371US
  • Power adaptor: 100~240Vac input, 5Vdc 1000mA
  • Protocol: Z-Wave
  • Dimension: 5.5 x 2.95 x 1.12 inches
  • Weight: 0.19 pounds
  • Color: Black
