Ecolink Z-Wave Plus PIRWAVE2.5-ECO Motion Sensor

Product Description

1. Z-Wave PlusTM enabled device which transmits upon detection of movement
2. Configurable to be less sensitive to the movement of small and medium size household pets
3. Reports tamper condition if cover is removed

Working with PhD

1. Monitor your Ecolink Motion Sensor and other connected devices with the Zinno app available on iOS&Android
2. Receive alerts from PhD if the Ecolink Motion Sensor detects movement
3. Associate Ecolink Motion Sensor with other smart devices in Zinno App, and set them to turn on or off when sensor detects movement

Add Ecolink Motion Sensor to PhD’s network

1. On the Zinno app, press Left Menu Bar, then select “Devices”
2. Select “+” button to put the PhD in inclusion mode, keep the sensor close to PhD within 10 feet (3 meters)

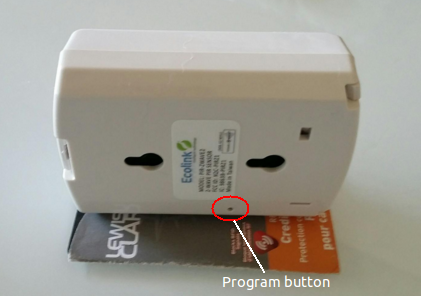

3. Press Program Button once
4. If detecting a new device successfully, PhD will announce “Found Device”, and Zinno app will display the dialog box, asking user to interact with device one more time
5. Repeat step #3, PhD will announce “The device is being added”
6. If adding the sensor successfully, PhD will announce “Adding Ecolink Motion Sensor success” and on Zinno app will display the dialog boxes that indicate user has added device successfully

Specification

• Model number: PIRWAVE2.5-ECO
• Power source: Battery
• Battery type: x1 CR123A Lithium
• Protocol: Z-Wave Plus
• Dimension: 1.8 x 2.3 x 3.5 inches
• Weight: 0.15 pounds
• Color: White
