EverSpring Z-Wave ST814-2 Multi Sensor

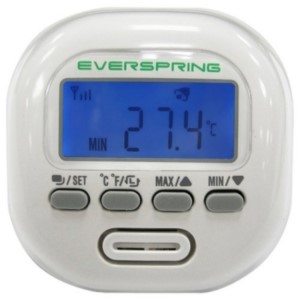

../../../_images/everspring_temp_humi_detector.jpg

Product Description

  1. Z-Wave compatible temperature / humidity sensor
  2. Includes LCD display with Fahrenheit and Celcius temps
  3. Give warnings when temperature or humidity reaches preset trigger values

Working with PhD

  1. Monitor temperature or humidity from EverSpring Multi Sensor

Add EverSpring Multi Sensor to PhD’s network

  1. On the Zinno app, press Left Menu Bar, then select “Devices”
  2. Select “+” button to put the PhD in inclusion mode, keep the sensor close to PhD within 10 feet (3 meters)
  3. Press Temperature unit button 3 times within 1.5 seconds
  4. If detecting a new device successfully, PhD will announce “Found Device”, and Zinno app will display the dialog box, asking user to interact with device one more time
  5. Repeat step #3, PhD will announce “The device is being added”
  6. If adding the sensor successfully, PhD will announce “Adding Everspring Temperature Humidity Sensor success” and on Zinno app will display the dialog boxes that indicate user has added device successfully
../../../_images/everspring_temp_humi_detector_d.jpg

Specification

  • Model number: ST814-2
  • Power source: USB DC 5V, Battery
  • Battery type: x3 AA batteries
  • Protocol: Z-Wave
  • Dimension: 3.8 x 3.5 x 2.8 inches
  • Weight: 0.5 pounds
  • Color: White
