SmartThings Zigbee ST-CEN-TEMP-1 Multi Sensor

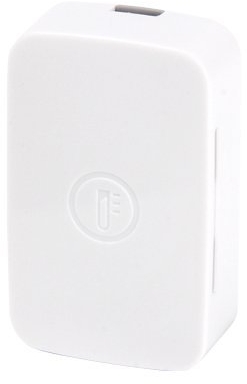

../../../_images/smartsense_temp_humi_sensor.jpg

Product Description

  1. Detect changes in-home temperature and humidity
  2. Report changes to controller

Working with PhD

  1. Monitor temperature or humidity from SmartThings Multi Sensor

Add SmartThings Multi Sensor to PhD’s network

  1. On the Zinno app, press Left Menu Bar, then select “Devices”
  2. Select “+” button to put the PhD in inclusion mode, keep the sensor close to PhD within 10 feet (3 meters)

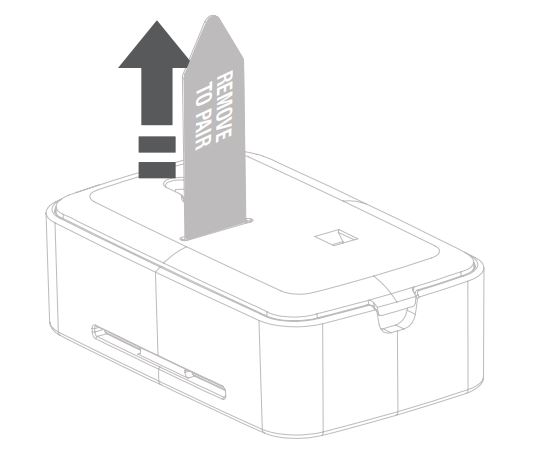

  3. Pull the REMOVE TO PAIR tab on the sensor, if detecting a new device successfully, PhD will announce “The device is being added” and begin the adding process
  4. If adding the sensor successfully, PhD will announce “Adding SmartThings Temp Humidity Sensor success” and on Zinno app will display the dialog boxes that indicate user has added device successfully
../../../_images/smartsense_temp_humi_sensor_detail.jpg

Specification

  • Model number: ST-CEN-TEMP-1
  • Power source: Battery
  • Battery type: CR2
  • Protocol: Zigbee
  • Dimension: 1.5 x 2.4 x 0.8 inches
  • Weight: 0.2 pounds
  • Color: White
