Aeotec Smart Switch Gen5

Aeon Labs ZW075-A02 Smart Switch Gen5, White

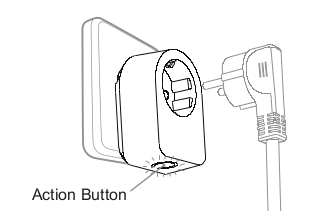

Operation

1. 1 short press:

   • Turn on/off output load
   • Include/Exclude when controller is in inclusion/exclusion mode

2. Press and hold 20 seconds

   • Factory reset device

Specification

• Operating distance: Up to 550 feet / 150 meters outdoors.

• Input: 120V~, 60Hz. (USA Version)

  230V~, 50Hz. (EU, AU Version)

• Output: 120V~, 60Hz, Max 15A Resistor load. (USA Version)

  230V~, 60Hz, Max 16A Resistor load. (EU Version) 230V~, 60Hz, Max 10A/15A Resistor load. (AU Version)

• Operating temperature: 0 °C to 40 °C .
• Relative humidity: 8‐80%

Inclusion/Exclusion to/from a network

1. Put controller to Inclusion/Exclusion mode
2. Press program button once. Device will be included/excluded to/from zwave network.

Link in Amazon

https://www.amazon.com/Aeon-Labs-ZW075-A02-Smart-Switch/dp/B01N4F7ARO

Configuration description

N/A.
