Oujiabao Smart Switch Module¶
Zigbee Smart Plug Socket for Smart Home Automation System¶
Specififcation¶
- Input voltage :AC85V ~ AC250V
- Output voltage :AC85V ~ AC250V
- Output current :10A
- Operating temperature :0 - 85℃
- Zigbee protocol:ZHA1.2

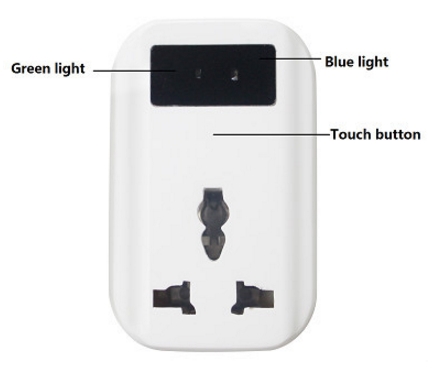

LED Status¶
- Green light on:Relay connected, socket output open
- Green light off:Relay disconnect, socket output shut down.
- Blue light flashing:device do not add to the zigbee network.
- Blue lights off: device has joined zigbee network.
Inclusion/Exclusion to/from a network¶
- Put controller to Inclusion/Exclusion mode
- Press and hold program button while powering
- Release button when LED flashes
- Wait for controller completes inclusion/exclusion process
Reference link¶
Configuration description¶
There is no configuration for this device.
