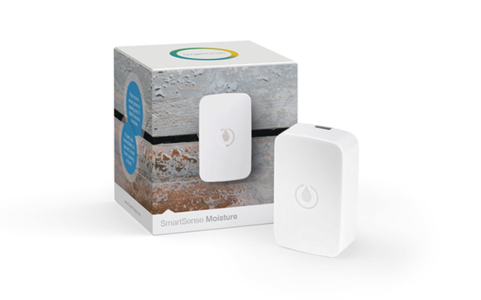

SmartThings Zigbee F-WTR-US-2 Water Leak Sensor

../../../_images/smartsense_moisture.png

Product Description

  1. Runny faucets, clogged drains, older pipes, and basements can all attract moisture and cause costly repair bills.
  2. Get an instant alert when water is detected where it’s not supposed to be, so you can take necessary actions before minor leaks become disasters.

Working with PhD

  1. Monitor your SmartThings Water Leak Sensor and other connected devices with the Zinno app available on iOS&Android
  2. Receive alerts from PhD if the SmartThings Water Leak Sensor detects detects water, or if the temperature changes
  3. Associate SmartThings Water Leak Sensor with other smart devices in Zinno App, and set them to turn on or off when sensor detects water

Add SmartThings Water Leak Sensor to PhD’s network

  1. On the Zinno app, press Left Menu Bar, then select “Devices”
  2. Select “+” button to put the PhD in inclusion mode, keep the sensor close to PhD within 10 feet (3 meters)

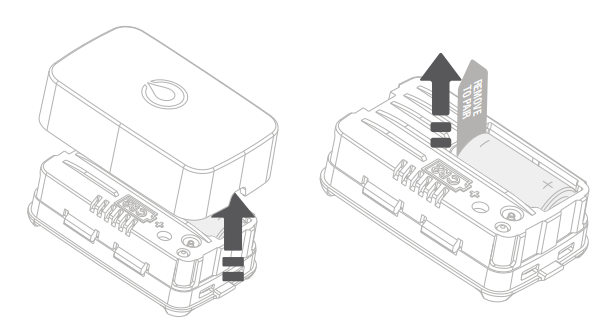

  3. Pull the REMOVE TO PAIR tab on the sensor, if detecting a new device successfully, PhD will announce “The device is being added” and begin the adding process
  4. If adding the sensor successfully, PhD will announce “Adding SmartThings Water Leak Sensor success” and on Zinno app will display the dialog boxes that indicate user has added device successfully
../../../_images/smartsense_moisture_i.png

Specification

  • Model number: F-WTR-US-2
  • Power source: Battery
  • Battery type: x1 CR2 Battery
  • Protocol: Zigbee
  • Dimension: 3.4 x 2.1 x 3.4 inches
  • Weight: 0.2 pounds
  • Color: White
