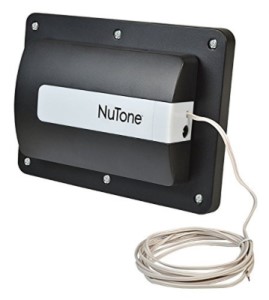

NuTone Z-Wave Plus NGD00Z Garage Controller

../../../_images/nutone_garage_controller.jpg

Product Description

  1. Wirelessly control and monitor your garage door from anywhere with the safest, most secure Z-Wave NuTone Smart Garage Door Controller – Patent Pending
  2. Assured safe operation with audible and visual notification prior to Open/Close of the garage door
  3. Works with virtually all sectional automatic garage door openers manufactured after 1993
  4. Installs in less than 30 minutes
  5. Up to 100 feet between wireless gateway and/or the closest Z-Wave device

Working with PhD

  1. Control NuTone Garage Controller and other connected devices with the Zinno app available on iOS&Android

Add NuTone Garage Controller to PhD’s network

  1. On Zinno App, go to Menu → Devices → Tap “+” button to put PhD to inclusion mode

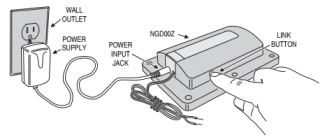

  2. Press and release the link button on the NGD00Z. Device will be included/excluded to zwave network.
../../../_images/nutone_garage_controller_d.jpg

Specification

  • Model number: NGD00Z
  • Power source: Wall-Powered, 120VAC
  • Protocol: Z-Wave Plus
  • Dimension: 1.75 x 7.5 x 5.25 inches
  • Weight: 2 pounds
  • Color: Black
