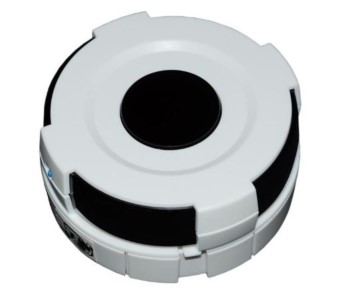

Xenon Z-Wave Sm-a722 IR Extender for Air Conditioner

../../../_images/xenon_ir_for_ac_zxt120.jpg

Product Description

  1. Built-in AC IR code library with Configuration Learning capability
  2. Able to feedback room temperature
  3. Build-in 5 direction IR emitters(hemispherical coverage)
  4. Transmit IR control code with a wide range of carrier frequency (15 to 455kHz)
  5. Programmable power level (LOW or HIGH) for external IR emitter to avoid saturation of IR receivers

Working with PhD

  1. Control Xenon IR Extender and other connected devices with the Zinno app available on iOS&Android
  2. Associate Xenon IR Extender and with other smart devices in Zinno App, and set it on or off when there is any event like the door open or turn on the light
  3. Automate the Xenon IR Extender with PhD Scence routes, like Good Morning, Goodnight…
  4. Control Xenon IR Extender with voice commands using PhD and the Google Assistant or Amazon Alexa

Add Remotec Z-Wave IR Extender to PhD’s network

  1. On Zinno App, go to Menu → Devices → Tap “+” button to put PhD to inclusion mode
  2. Press “PROG” button once. Device will be included/excluded to/from zwave network.

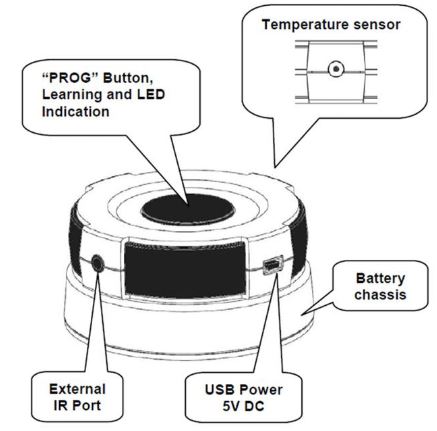

../../../_images/item96_xenon_ir_for_ac_zxt120_detail.jpg

Specification

  • Model number: Sm-a722
  • Power Source: USB mini-B, 5V DC Jack, or Battery
  • Battery Type: x3 AAA
  • Protocol: Z-Wave
  • Dimension: 2.76 (diameter) x 0.7 (thickness) inches
  • Weight: 0.1 pounds
  • Color: White
