Aeotec Z-Wave Plus ZW074-A MultiSensor Gen5

Product Description

1. 4-in-1 Indoor/Outdoor Z-Wave Multisensor.
2. Detects motion, light sensitivity, temperature and humidity.
3. Sends signals to as many as 6 associated Z-Wave devices.

Working with PhD

1. Monitor Aeotec Multisensor Gen5 and other connected devices with the Zinno app available on iOS&Android
2. Receive alerts from PhD if the Aeotec Multisensor Gen5 detects movement
3. Associate Aeotec Multisensor Gen5 with other smart devices in Zinno App, and set them to turn on or off when sensor detects movement

Add Aeotec Multisensor Gen5 to PhD’s network

1. On the Zinno app, press Left Menu Bar, then select “Devices”
2. Select “+” button to put the PhD in inclusion mode, keep the sensor close to PhD within 10 feet (3 meters)

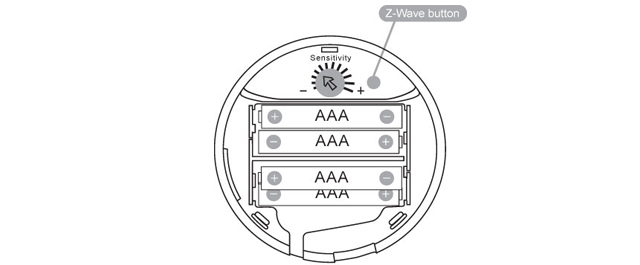

3. Press the Action Button on Aeotec Multisensor Gen5
4. If detecting a new device successfully, PhD will announce “Found Device”, and Zinno app will display the dialog box, asking user to interact with device one more time
5. Repeat step #3, PhD will announce “The device is being added”
6. If adding the sensor successfully, PhD will announce “Adding Aeotec Multisensor Gen5 success” and on Zinno app will display the dialog boxes that indicate user has added device successfully

Specification

• Model number: ZW074-A
• Power source: USB DC 5V, Battery
• Battery type: x2 CR123A batteries
• Protocol: Z-Wave Plus
