Jasco in-wall switch

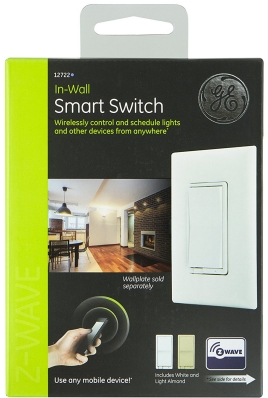

GE Z-Wave Wireless Smart Lighting Control Smart Switch, On/Off, In-Wall, Includes White & Light Almond Paddles, Works with Amazon Alexa, 12722

../../../_images/jasco_inwall_switch_12722.jpg

Operation

  • Turn ON/OFF manually or remotely via the Z-Wave controller
  • Can be Included in multiple Groups and Scenes
  • May be used in single pole installation or with up to two GE Add-on switches in 3-way or 4-way wiring configurations
  • Compatible with all incandescent and CFL/LED bulbs
  • Interchangeable Paddle switch — White & light almond paddle in package
  • Uses a standard, decorative-size wall plate for single gang installations (wall plate not included)
  • Blue LED indicates switch location in a dark room
  • Z-Wave Certified for simple pairing and integrated home automation
  • Screw Terminal Installation — requires wiring connections for Line (Hot), Load, Neutral, and Ground. Traveler wire required for 3-way or 4-way installation

Specification

  • Power: 120 VAC, 60 Hz.
  • Signal (Frequency): 908.42 MHz.
  • Maximum Loads: 960W, incandescent, 1⁄2 HP Motor or 1800W (15A) Resistive
  • Range: Up to 100 feet line of sight between the Wireless Controller and the closest Z-Wave receiver module.
  • Operating Temperature Range: 32-104° F (0-40° C)
  • For indoor use only.

Inclusion/Exclusion to/from a network

  1. Put controller to Inclusion/Exclusion mode
  2. Push bottom paddle once. Device will be included/excluded to/from zwave network.

Configuration description

  1. LED light specify
    • Parameter: 3 (0x03)
    • Size: 1 byte
    • Value:
      1. 0 = LED on when light off
      2. 1 = LED on when light on
      3. 2 = LED off all the time
    • Default: 0
  2. Invert switch
    • Parameter: 4 (0x04)
    • Size: 1 byte
    • Value:
      1. 0 = ON at the bottom and OFF at the top
      2. 1 = ON at the top and OFF at the bottom
    • Default: 0
